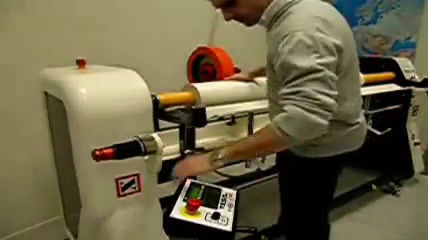

Flexa Tesis R Manual Slitter & Rewinder

TESIS R MANUAL ROLL-SLITTER WITH LOG REWINDER
Manual roll-slitter for quick, precise cutting of various materials including self adhesive tape, vinyl and many more, from wide log format into finished roll widths.
Fast & Efficient; slit rolls rapidly into different widths. With the added facilty to rewind from master-roll to shorter lengths
Core size flexibility; process rolls with a 76mm (3”) core, with options also for 57mm (2”1/4) and 50mm (2”) diameter. Other options on request.
Easy to use; Roll / mandrel rotation activated by a push button on the blade control hand grip
Safe to operate; full guarding around the blade with retractable guard during slitting process.


Features
The unwind shaft allows rewinding of master rolls into shorter lengths or even different size cores, the unwind station also has a variable brake to allow tension control.
Cutting width and rewound length digital read out display
Automatically stops rewinding when the set length is reached
Easy loading device for heavy roll changeover
PLC Control system
Circular cutting blade Ø 315 mm ( 12 in.) with full protection and gradual uncovering during cut
Integrated cutting blade lubrication system
